Structural Calculations

Understanding Structural Calculation Reports for Retractable Structures

In the fields of architecture and structural engineering, a Structural Calculation Report (often referred to as a “calc book” or “structural package”) is a comprehensive document that provides the mathematical proof that a building or individual component is safe, stable, and compliant with relevant building codes.

When dealing with retractable structures—such as retractable sunrooms, pool enclosures, or large-scale folding roofs—this document becomes even more critical due to the dynamic nature of the installation.

What is a Structural Calculation Report?

A Structural Calculation Report is a technical dossier compiled by a structural engineer. It details the loads a structure will be subjected to and demonstrates how the chosen materials and design will resist those loads.

A standard report typically includes:

• Design Criteria: A list of the building codes (e.g., AS/NZS for Australia, NBCC for Canada) and standards used.

• Load Analysis: Calculations for “Dead Loads” (weight of the structure itself), “Live Loads” (occupancy), and environmental loads like wind speed, snow accumulation, and seismic activity.

• Material Specifications: Details on the alloys used (such as 6061-T6 aluminum), glass thickness, and fastener grades.

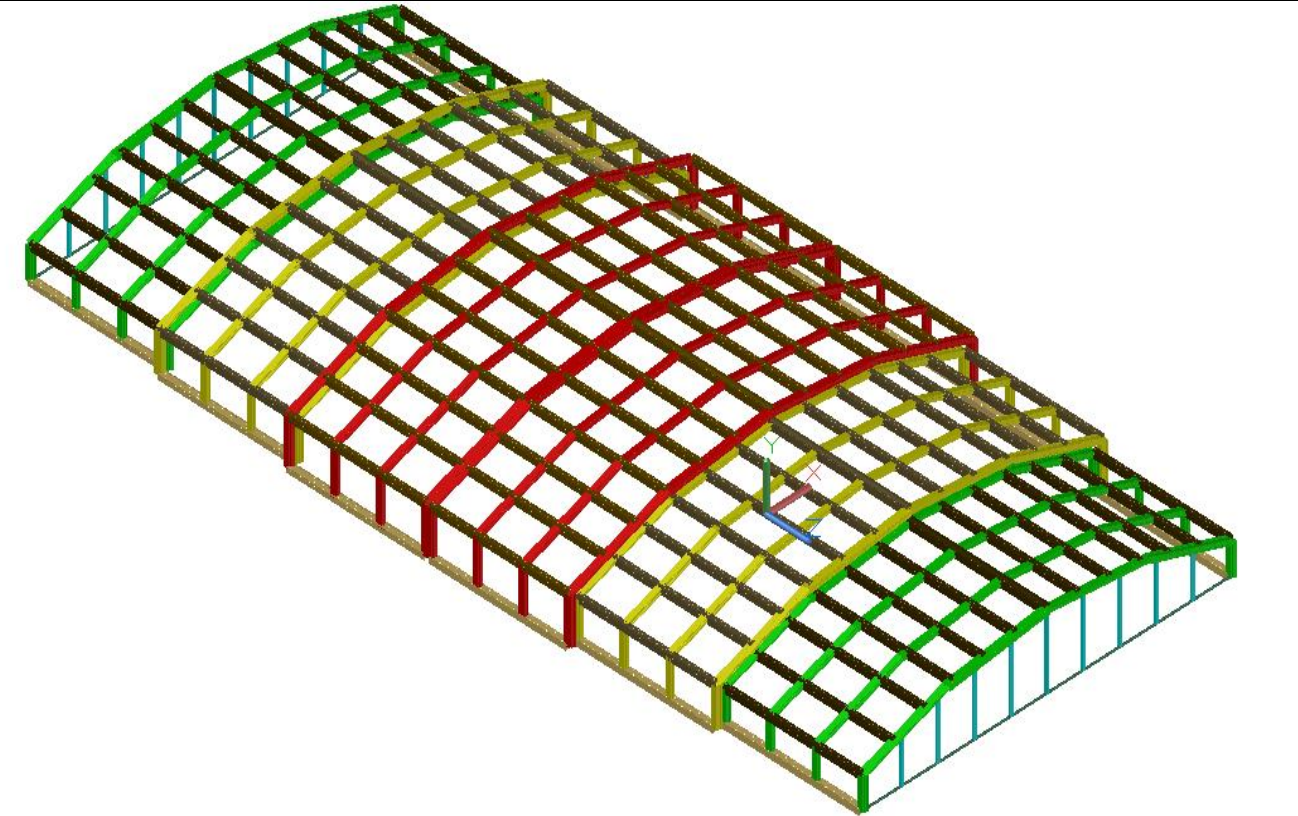

• Member Verification: Mathematical modeling showing that beams, columns, and rafters will not deflect or break under pressure.

• Connection Details: Analysis of how parts are bolted or welded together, ensuring the joints are as strong as the members they connect.

The Role of Structural Calculations for Retractable Structures

Retractable structures are unique because they must be structurally sound in both their open and closed positions, as well as while in motion. Here is why a calculation report is indispensable:

1. Safety and Risk Mitigation

The primary purpose is life safety. Retractable structures often involve heavy aluminum frames and large glass or polycarbonate panels. A calculation report ensures that the frame can withstand high-velocity wind gusts without lifting or collapsing, protecting the occupants and the surrounding property.

2. Compliance and Legal Approval

For most commercial and high-end residential projects, local building departments require a stamped structural calculation report to issue a building permit. Without this document, the structure may be deemed illegal, leading to fines or forced removal. Furthermore, it is a vital document for insurance coverage.

3. Optimizing Material Performance

Retractable systems require a delicate balance between strength and weight. If the structure is too heavy, the motor and drive system will fail prematurely; if it is too light, it may bend under snow loads. Precise calculations allow engineers to select the exact aluminum temper (e.g., 6063-T5 vs. 6061-T6) and profile thickness needed to achieve maximum durability with minimum weight.

4. Deflection and Operational Integrity

A retractable roof must slide smoothly along its tracks. Even minor sagging (deflection) in the beams can cause the panels to jam or the seals to leak. Structural calculations predict the amount of deflection under load, allowing the designer to stiffen the tracks and rafters to ensure the system remains functional for years.

5. Foundation and Attachment Verification

The report doesn’t just look at the product; it looks at how the product connects to the earth or an existing building. It specifies the type of anchors and the depth of the concrete footings required to prevent “uplift”—a common issue where wind acts like a wing and tries to pull the structure off the ground.

Summary

For any high-quality retractable architectural project, a Structural Calculation Report is not just “paperwork.” It is the engineering blueprint for reliability. It transforms a design concept into a verified, high-performance solution that can withstand the elements, satisfy legal requirements, and provide peace of mind for the end-user.
